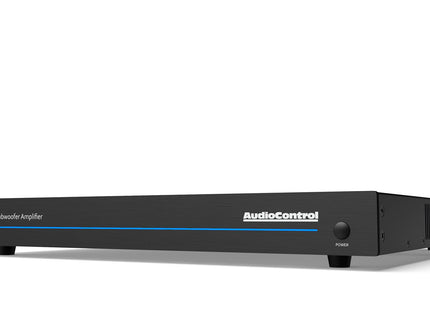

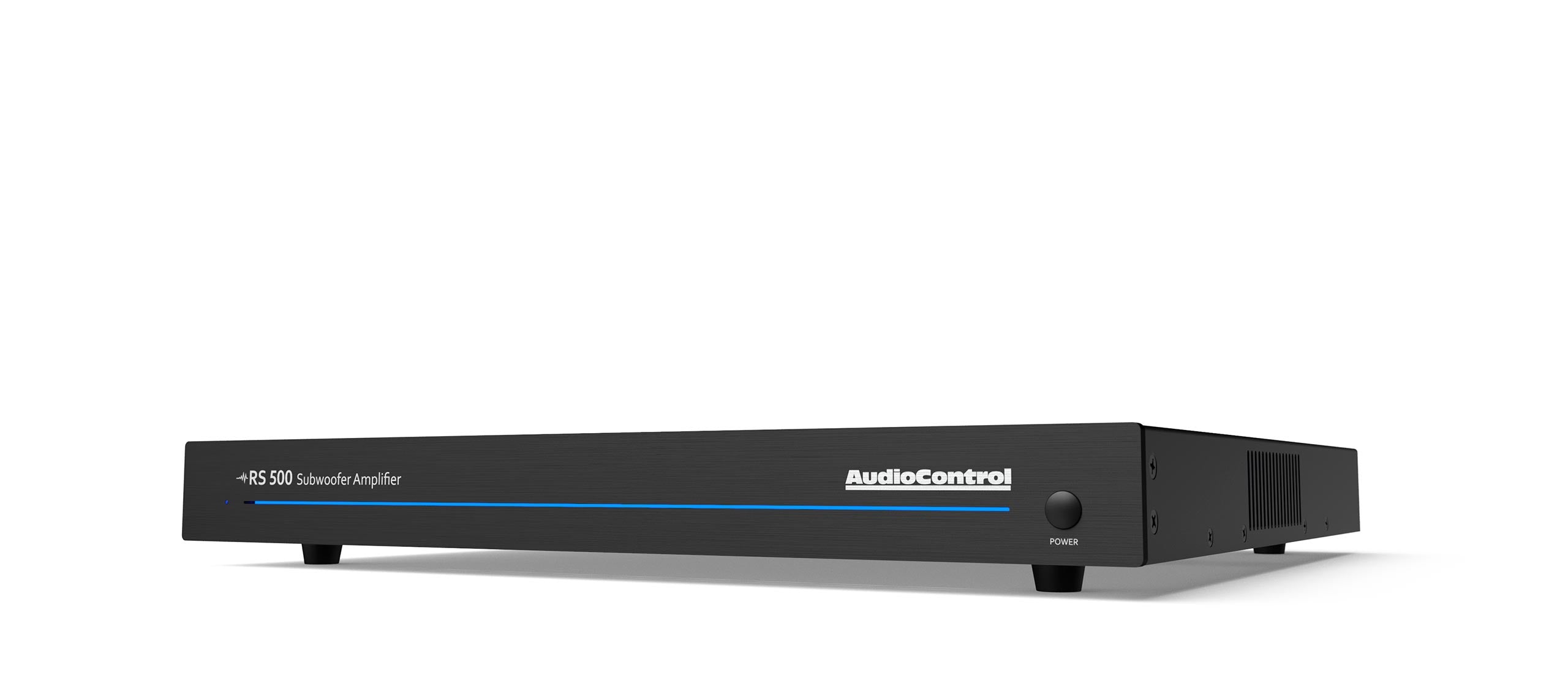

RS 500

Description

500W Subwoofer Amplifier with DSP

The AudioControl RS 500 DSP-controlled subwoofer amplifier is the ultimate bass amplification solution for any home cinema, multi-zone audio, or 2.1-channel music system.

RS Series amplifiers deliver continuous power into speaker loads from 2 to 8 ohms, and like many AudioControl amplifiers, the RS series offers IP or IR control, plus looped outputs with an optional high-pass filter.

The power of AudioControl’s multi-award-winning DSP engine, coupled with features such as graphic equalization, parametric equalization, high/low filter cutoff, and incremental signal phase with delay compensation, put precise calibration and fine-tuning control at your fingertips for accurate, authoritative bass response. RS Series amplifiers are the definitive choice to power passive subwoofers in entertainment systems that demand the very best.

RS 500

Product form

500W Subwoofer Amplifier with DSP

  • 500 Watts at 8/4 Ohms, stable into 2 ohms
  • Powerful Web interface with DSP Control
  • Downloadable Speaker Optimization Profiles
  • Programmable Graphic & Parametric Equalization

SKU: 8611650

Description

500W Subwoofer Amplifier with DSP

The AudioControl RS 500 DSP-controlled subwoofer amplifier is the ultimate bass amplification solution for any home cinema, multi-zone audio, or 2.1-channel music system.

RS Series amplifiers deliver continuous power into speaker loads from 2 to 8 ohms, and like many AudioControl amplifiers, the RS series offers IP or IR control, plus looped outputs with an optional high-pass filter.

The power of AudioControl’s multi-award-winning DSP engine, coupled with features such as graphic equalization, parametric equalization, high/low filter cutoff, and incremental signal phase with delay compensation, put precise calibration and fine-tuning control at your fingertips for accurate, authoritative bass response. RS Series amplifiers are the definitive choice to power passive subwoofers in entertainment systems that demand the very best.

  • FEATURES
  • POWER AND CONTROL AT YOUR FINGERTIPS
  • SPEAKER OPTIMIZATION PROFILES
  • SPECIFICATIONS
  • RESOURCES
  • 500 Watts into 8, 4, or 2 Ohms
  • Digital Signal Processing (DSP) Performance
  • Six-band Graphic EQ
  • Eight-band Parametric EQ
  • Variable Crossover with protective Subsonic Filter
  • Downloadable Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Digital Signal Sense
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Balanced Input/Thru Output
  • Unbalanced Inputs/Thru Output
  • LFE Input/Thru Output
  • Speaker-Level Inputs
  • 12 Volt Triggerable
  • 5-Way Binding Posts
  • Perfect for Home and Commercial Installations

​The RS Series subwoofer amplifiers feature on-board digital signal processing, graphic & parametric equalization, network monitoring and programming, plus the addition of volume control, and EQ presets.



MAIN
GRAPHIC EQ
PARAMETRIC EQ
CROSSOVER
SETUP


​AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from RS Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.

AUDIOCONTROL SOUND PARTNERS™

INPUTS
Audio Inputs: 1 Balanced, 2 Unbalanced, 1 LFE, 2 Speaker-Level
Nominal sensitivity: 0.5V to 4V (user selectable)
Signal to Noise (A-wtd ref full output): 98 dB
Frequency Response: 15 Hz – 350 Hz
CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
Network Connection/Protocol: 10BaseT Ethernet TCP/IP
Communication Protocol: HTTP or Telnet
12 Volt Trigger Outputs: 1
IR Receiver Inputs: 1
OUTPUTS
Amplifier Channels: 1
Continuous power output:  500W
Minimum Speaker Load: 2Ω
Loop/Thru Audio Outputs: 1 Balanced, 2 Unbalanced, 1 LFE
Total Harmonic Distortion: 0.1%
WEIGHT & DIMENSIONS
Dimensions (including terminals and feet): 17” W x 17.5” D x 1.75” H (1 U)
Weight: 14.9 lbs. (6.8 kg)
 IN THE BOX
RS 500, power cord, rack mounting brackets, user manual, warranty

MANUAL
DATA SHEET
FIRMWARE
SUB SPEAKER PROFILES
