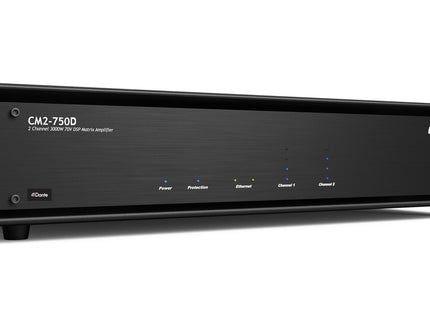

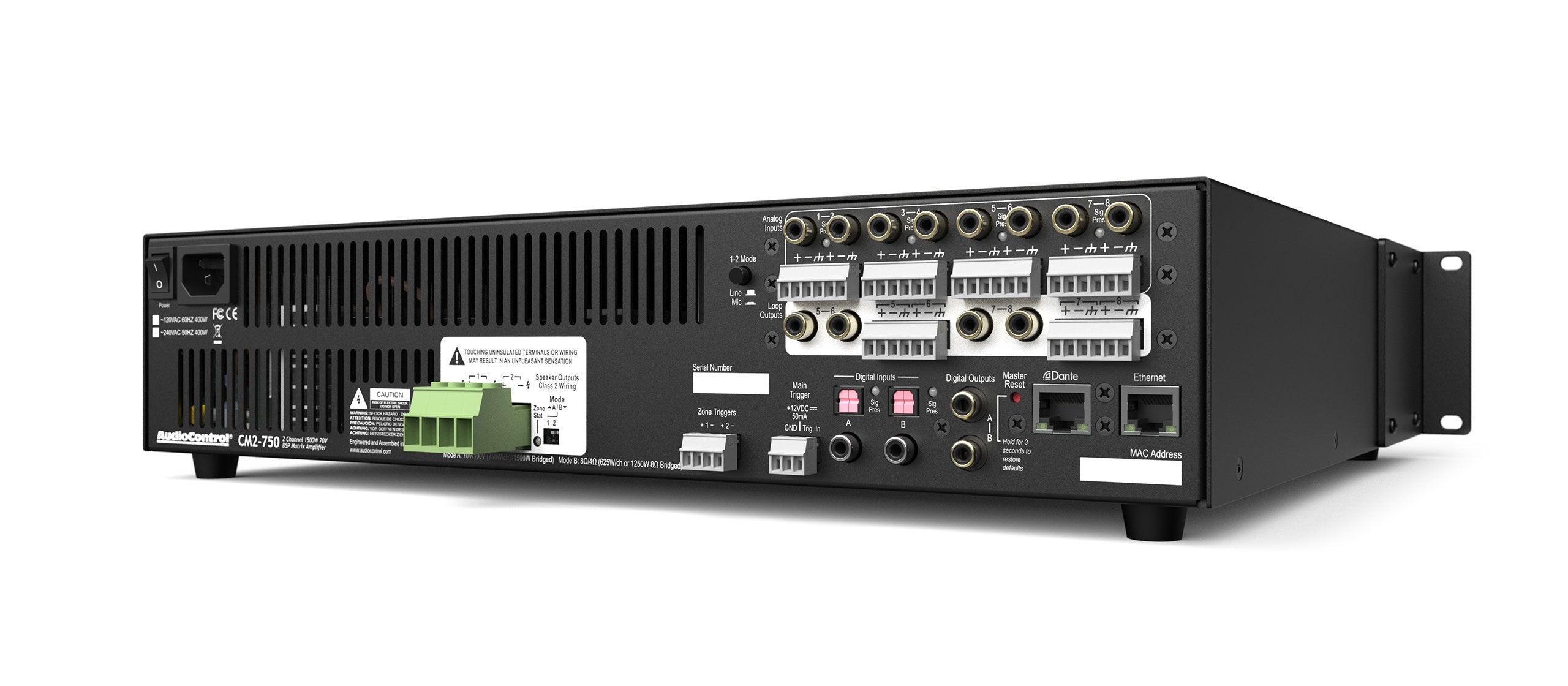

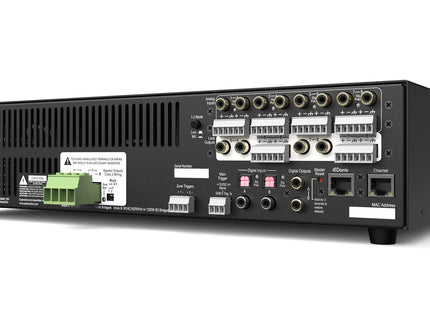

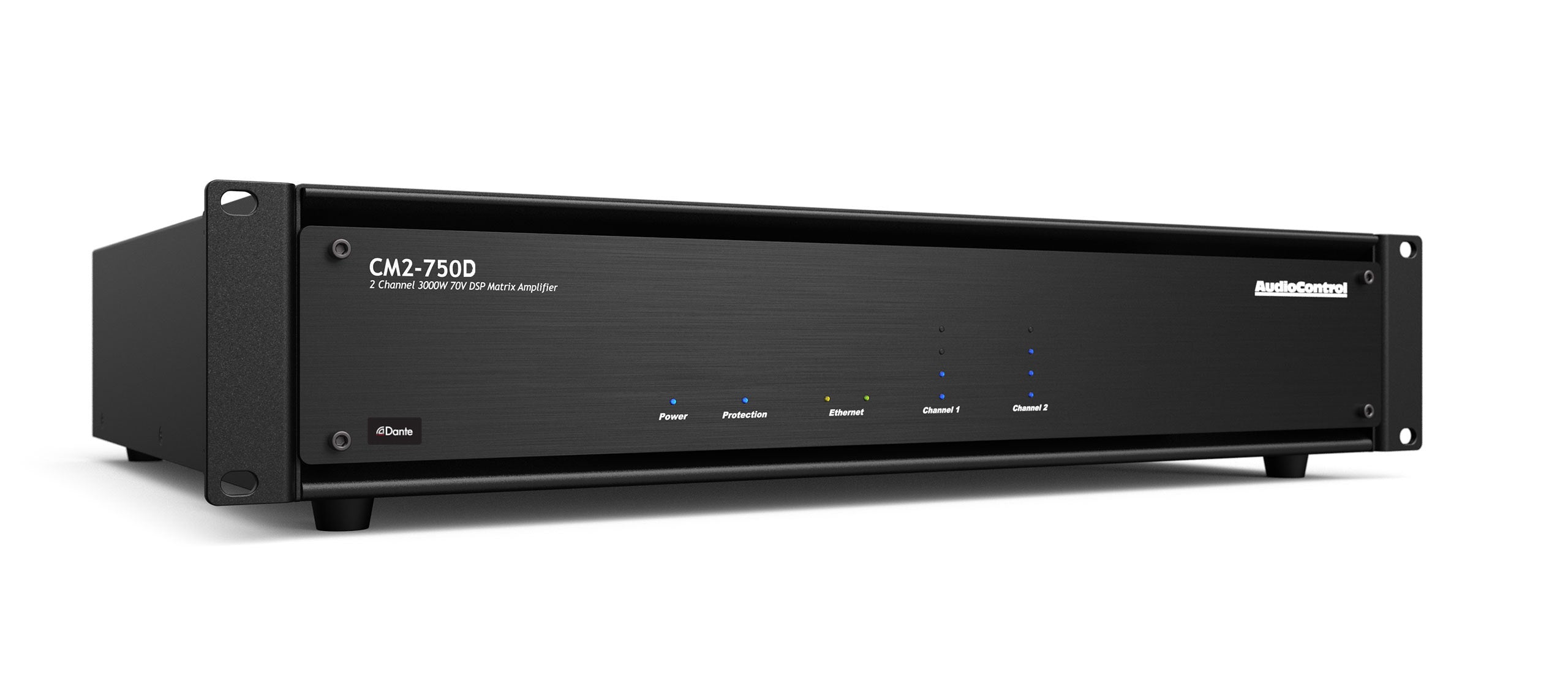

CM2-750D with Dante

Description

2-Channel High Power Dual Mode 70V DSP Amplifier

 AudioControl 70-volt amplifiers are designed to deliver high power with superior audio quality to a large number of loudspeakers. Ideal for outdoor audio systems or commercial A/V installations, DSP control and signal matrixing capabilities from AudioControl’s award-winning Director Series amplifiers enable integrators to precisely tailor the sound to any listening environment.  Choose from balanced/unbalanced analog, microphone, or digital inputs. Outputs can be configured in mono or stereo, giving integrators the configuration flexibility they need to accommodate any system architecture. System setup and diagnostics can be managed remotely via an IP web interface for maximum efficiency.



DANTE SUPPORT

Dante audio networking uses standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. Dante is the audio networking choice of nearly all professional audio manufacturers.

CM2-750D with Dante

Product form

2-Channel High Power Dual-Mode 70V DSP Amplifier with Dante

  • Dante audio distribution
  • 3 outputs, 750 W per zone
  • Switchable 70 V/100 V into 8 ohm/4 ohm outputs
  • Matrixable inputs
  • Powerful web interface with DSP Control

SKU: 8611625

Description

2-Channel High Power Dual Mode 70V DSP Amplifier

 AudioControl 70-volt amplifiers are designed to deliver high power with superior audio quality to a large number of loudspeakers. Ideal for outdoor audio systems or commercial A/V installations, DSP control and signal matrixing capabilities from AudioControl’s award-winning Director Series amplifiers enable integrators to precisely tailor the sound to any listening environment.  Choose from balanced/unbalanced analog, microphone, or digital inputs. Outputs can be configured in mono or stereo, giving integrators the configuration flexibility they need to accommodate any system architecture. System setup and diagnostics can be managed remotely via an IP web interface for maximum efficiency.



DANTE SUPPORT

Dante audio networking uses standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. Dante is the audio networking choice of nearly all professional audio manufacturers.
  • FEATURES
  • POWER AND CONTROL AT YOUR FINGERTIPS
  • SPEAKER OPTIMIZATION PROFILES
  • SPECIFICATIONS
  • RESOURCES
  • Network DSP Matrix Amplifier With Volume Control Dante port
  • 2 Channels x 750 Watts at 70/100 V or 2 Ω/4 Ω (All Channels Driven)
  • 2 Channels x 625 Watts at 8 Ω (All Channels Driven)
  • 1500 Watts of Bridged Power at 70/100 V or 4 Ω/8 Ω
  • Digital Signal Processing (DSP) Performance
  • Downloadable Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
  • Built-in Matrix Delivers Analog or Digital Inputs for Routing To Any Zone or
  • Digital Bus Output
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifier
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive™ Anti-Clipping Speaker Protection
  • Digital Coaxial/TOSLINK signal sensing inputs
  • Balanced Analog Euro-block Inputs
  • Single-ended RCA Inputs with Loop Outputs
  • Dual Coaxial Digital Bus Outputs
  • Commercial and Home Installations

The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.



Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.

AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.



AUDIOCONTROL SOUND PARTNERS™



INPUTS
Inputs: 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Coaxial/TOSLINK Inputs
Input Sensitivity: 1 Vrms for full output, level at maximum
Input Gain: 30 dB
CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
Network Connection/Protocol: 10Base-T Ethernet TCP/IP
Communication Protocol: HTTP or Telnet
OUTPUTS
Amplifier Channels: 2
Power Output (70 V/100 V): 750 W per channel
Power Output (70 V/100 V Bridged): 1500 W
Power Output (8 Ω/4 Ω): 625 W per channel
Power Output (8 Ω Bridged): 1250 W
Minimum Speaker Load: 2 Ω
Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs
WEIGHT & DIMENSIONS
Dimensions: 17” W x 15.5” D x 3.5” H (2 U)
Weight: 18.5 lbs. (8.4 kg)
 IN THE BOX
Model CM4-750, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty

MANUAL
DATA SHEET
DRIVERS
AUTOMATION TABLE
FIRMWARE
SPEAKER PROFILES

DANTE CONTROLLER
