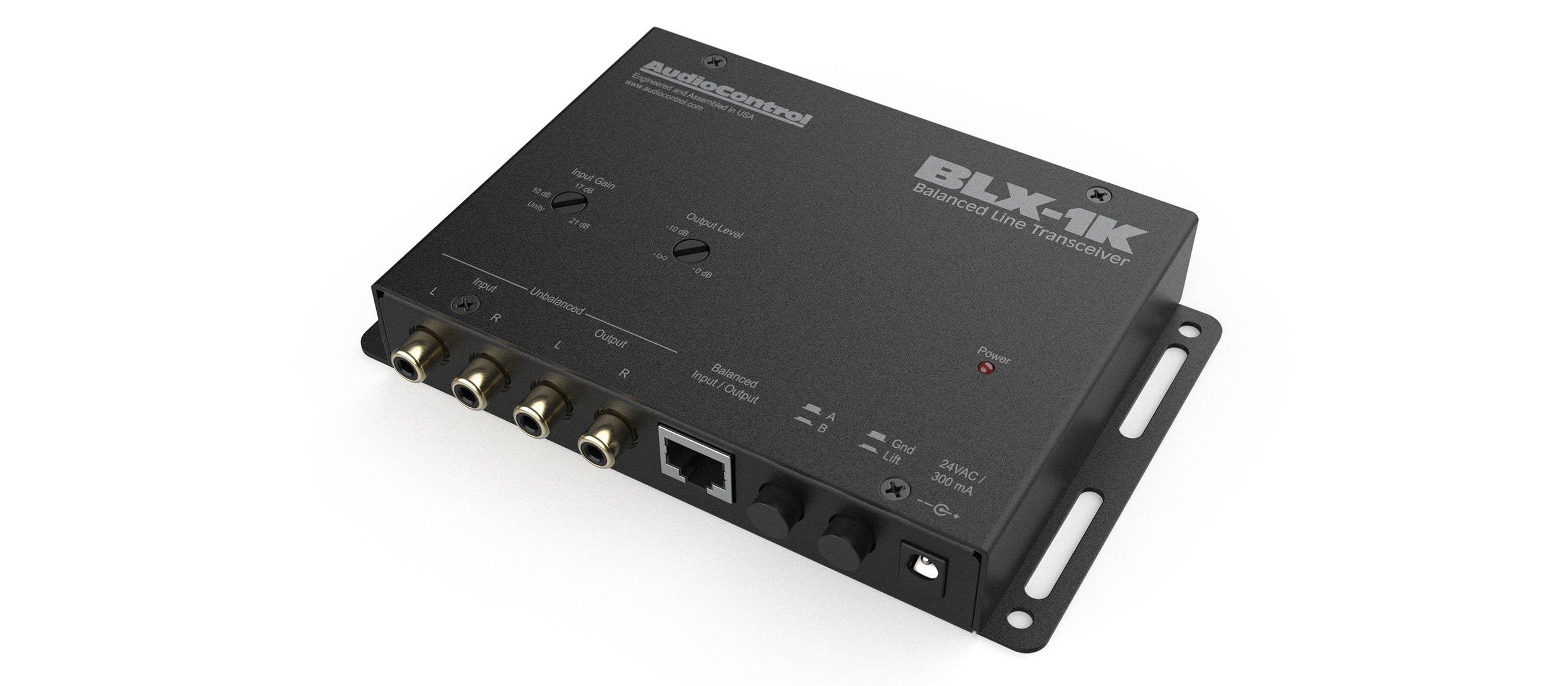

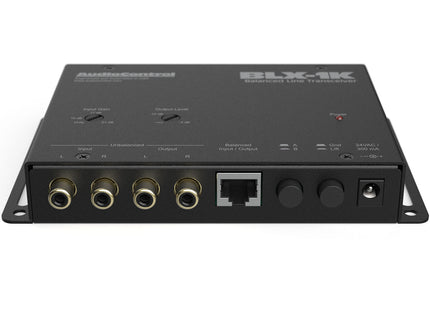

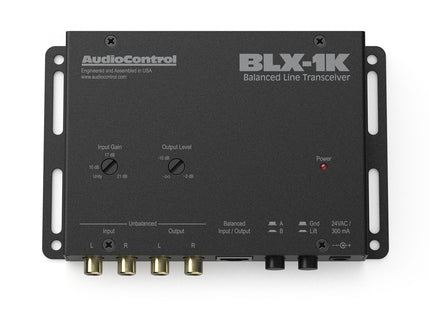

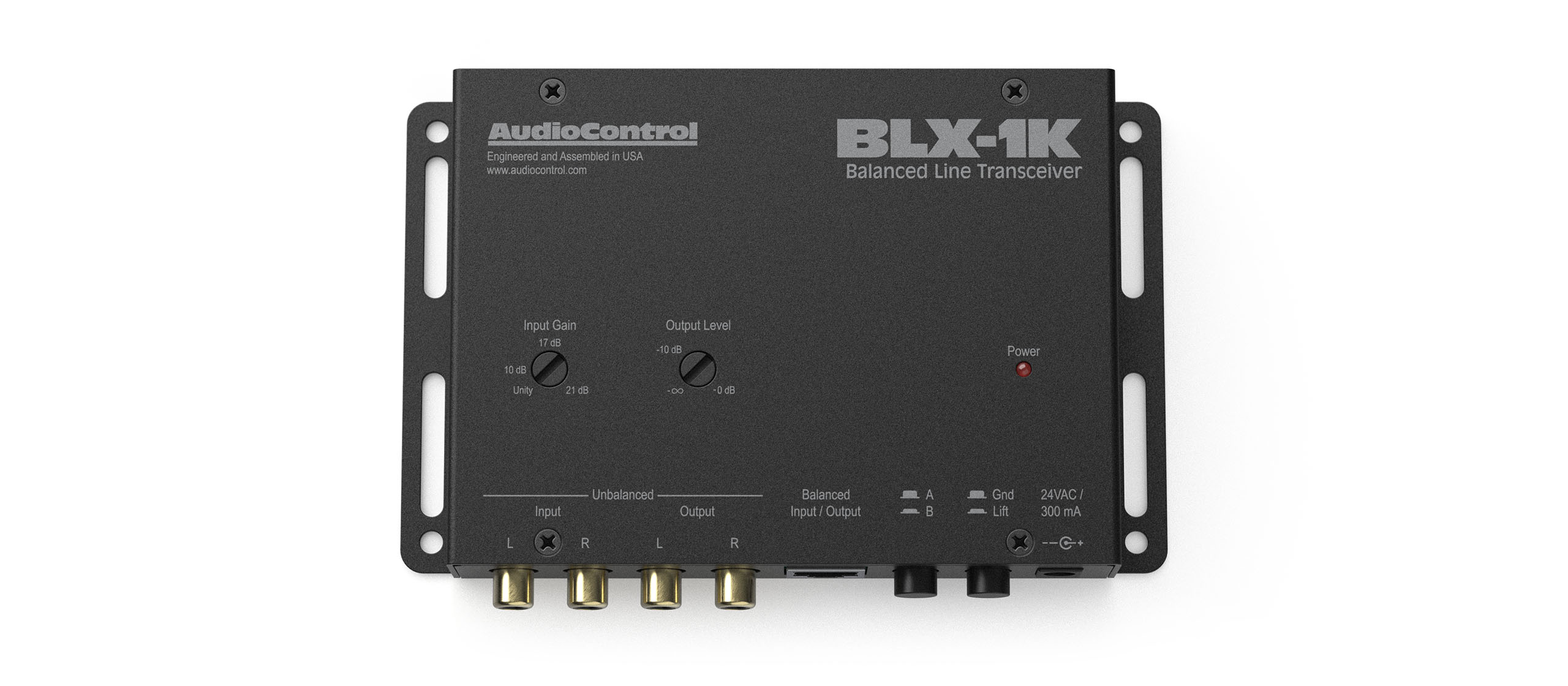

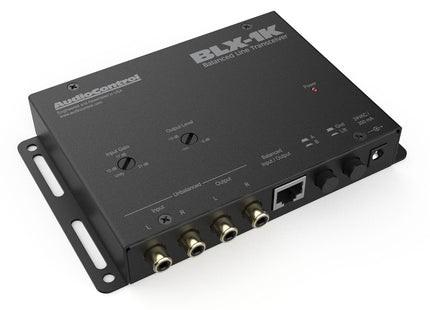

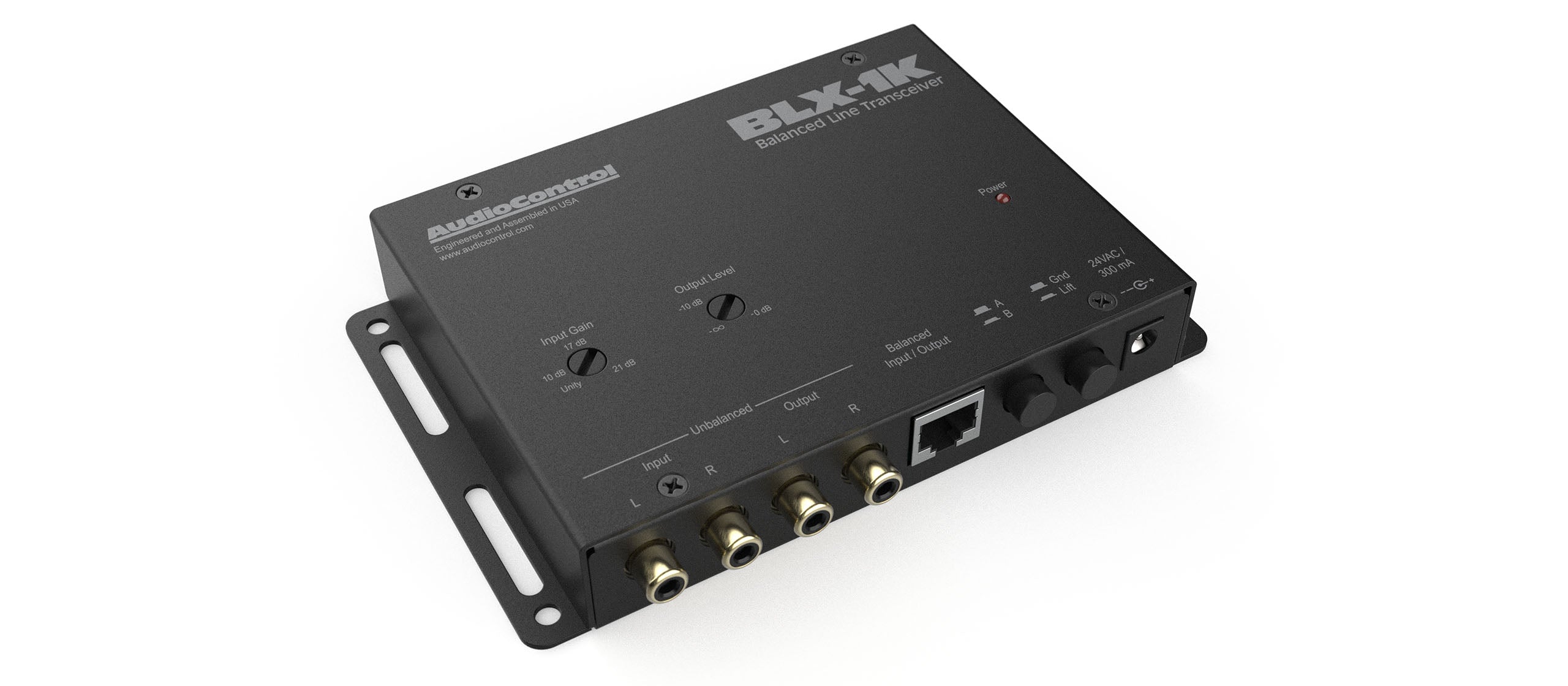

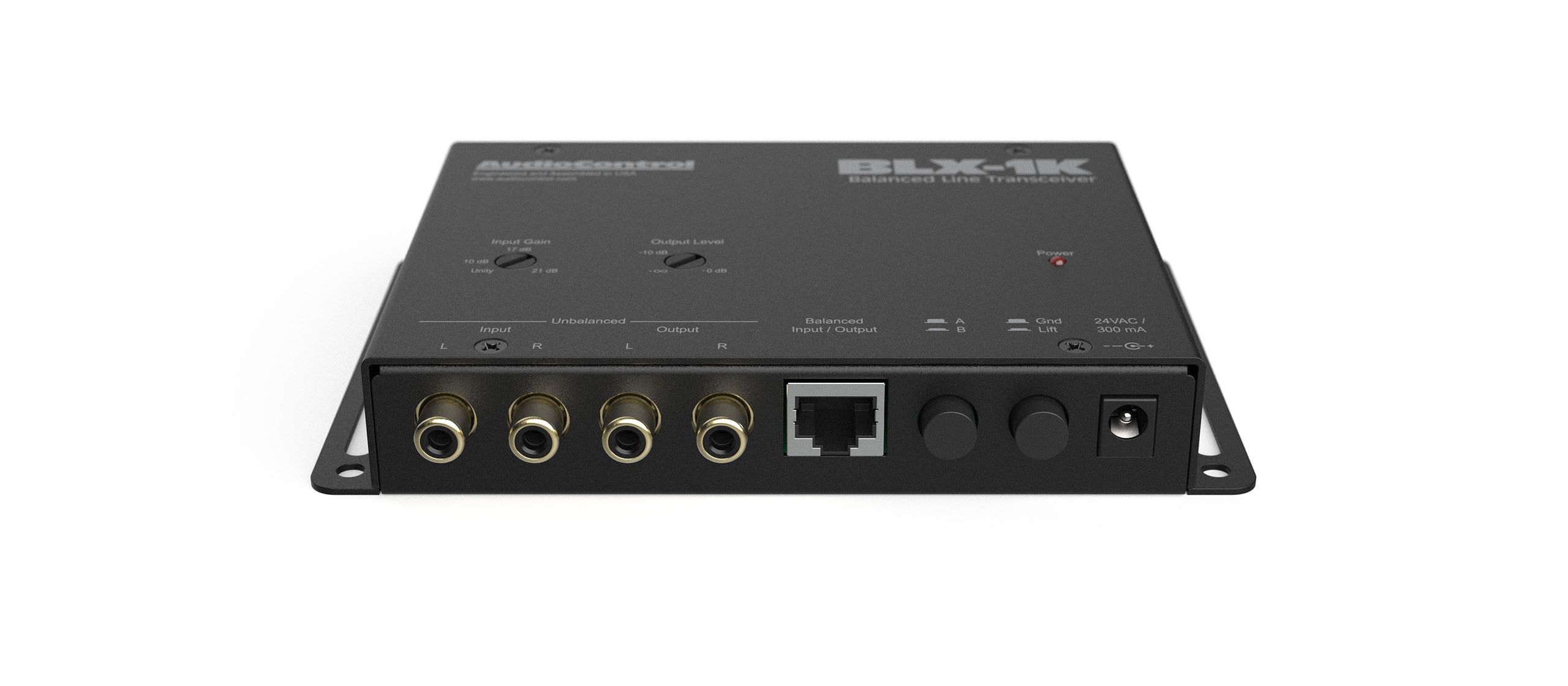

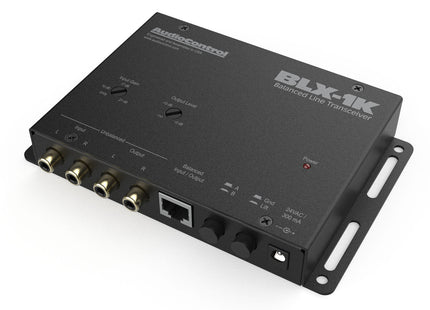

BLX-1K

Description

Balanced Line Transceiver

Professional A/V installers often encounter projects that require long cable runs, and the BLX-1K has been engineered as a premium, simple solution to efficiently address these challenges. The BLX-1K is a signal extender that sends and receives a fully balanced, noise-rejecting, analog audio signal up to 1000 feet over standard Cat5/6 cable.

Designed to be used in pairs at both ends of the signal path, each BLX-1K contains a 2-channel receive stage as well as a 2-channel transmit stage, enabling audio to travel in both directions across a span of standard Cat5/6. Once wired connections are made, the A/B button on one unit is pressed to reverse the signal path. Signal gain can then be set to complete the installation. The BLX-1K comes equipped with a 24 VAC transformer for easy connection and ultra-quiet performance.

The BLX-1K delivers a stout output of nearly 8 Volts RMS with an exceptionally low noise floor, providing a pure, crystal clear audio signal over long Ethernet runs—the ultimate problem-solver for A/V installers.

BLX-1K

Product form

Balanced Line Transceiver

  • Send/receive high quality audio up to 1000 feet
  • High gain, low noise outputs
  • Supports standard Cat5/6 cable
  • Independent gain and attenuation controls

SKU: 8611770

    Description

    Balanced Line Transceiver

    Professional A/V installers often encounter projects that require long cable runs, and the BLX-1K has been engineered as a premium, simple solution to efficiently address these challenges. The BLX-1K is a signal extender that sends and receives a fully balanced, noise-rejecting, analog audio signal up to 1000 feet over standard Cat5/6 cable.

    Designed to be used in pairs at both ends of the signal path, each BLX-1K contains a 2-channel receive stage as well as a 2-channel transmit stage, enabling audio to travel in both directions across a span of standard Cat5/6. Once wired connections are made, the A/B button on one unit is pressed to reverse the signal path. Signal gain can then be set to complete the installation. The BLX-1K comes equipped with a 24 VAC transformer for easy connection and ultra-quiet performance.

    The BLX-1K delivers a stout output of nearly 8 Volts RMS with an exceptionally low noise floor, providing a pure, crystal clear audio signal over long Ethernet runs—the ultimate problem-solver for A/V installers.

    • FEATURES
    • SPECIFICATIONS
    • RESOURCES
    • Send/receive high quality audio up to 1000 feet
    • High gain, low noise outputs
    • Simple connection with one-button setup
    • Supports standard Cat5/6 cable
    • Separate balanced line driver and receiver stages
    • Independent gain and attenuation controls
    • Ground lift option (when using shielded Cat5/6)
    • Integrated mounting brackets
    INPUTS
    Unbalanced Inputs (RCA): 2
    Unbalanced Input Impedance: 100 kΩ
    Maximum Unbalanced Input Signal Level: 3.8 Vrms
    Balanced Inputs (Cat5/6): 1 (2 channel)
    Balanced Input Impedance: 200 kΩ
    GENERAL
    Power Supply: 24 VAC
    Current Draw: 50 mA
    OUTPUTS
    Unbalanced Outputs (RCA): 2
    Unbalanced Output Impedance: 150 Ω
    Maximum Unbalanced Output Signal Level: 7.5 Vrms max
    Balanced Outputs (Cat5/6): 1 (2 channel)
    Balanced Output Impedance: 150 Ω
    Maximum Balanced Output Signal Level: 15 Vrms max
    WEIGHT & DIMENSIONS
    Dimensions: 6.2” W x 4.3” D x 1.0” D
    Weight: 1.0lbs (0.5kg)
    PERFORMANCE
    Frequency Response: 20 Hz – 20 kHz, ± 1 dB
    Signal to Noise: >100 dB (ref. full output =  7.5 Vrms)
    Total Harmonic Distortion: 0.1%
    Headroom: 8.5 dB
    Channel Separation: 90 dB (1 kHz)
    CMRR: >69.5 dB (1kHz)
    IN THE BOX
     BLX-1K, AC Adapter, Manual, Warranty
